生化试剂
商品参数
- 产品细分:DNA+RNA纯化仪
- 合作品牌:Promega
- 货期:咨询客服
商品描述
Nucleic Acid Extraction for IVD and Research Use
Purifies 1–48 samples in a single run
Designed and manufactured under cGMP
Generates consistent, high-quality nucleic acid for use in downstream diagnostic amplification assays
Flexible, multi-functional software with separate RUO mode for performing extractions intended for use in research applications
Provides technical elements supporting 21 CFR Part 11 compliance (user authentication and authorization, data integrity and protection, electronic signatures and audit trails) when used with the appropriate laboratory workflow
Manufactured under cGMP

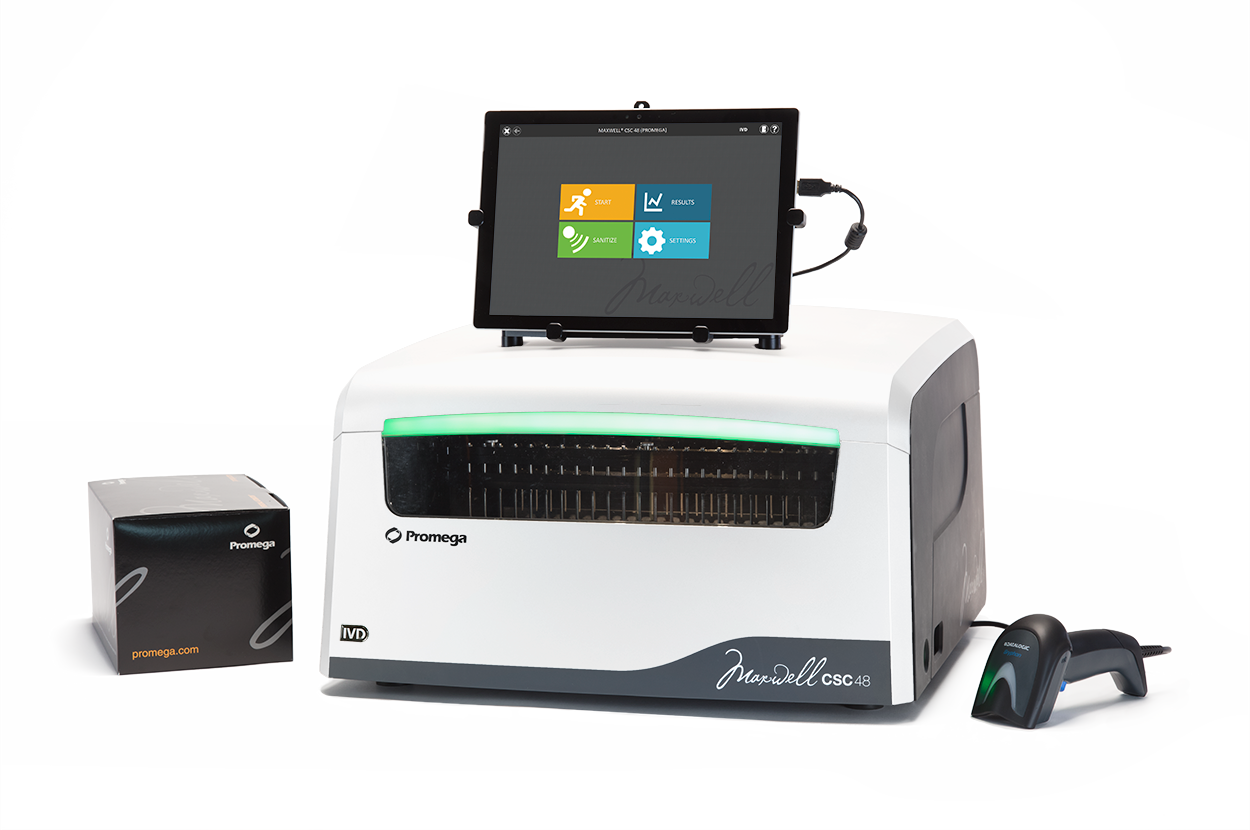

The Maxwell® CSC 48 automated nucleic acid extraction system is an in vitro diagnostic medical device specifically designed for clinical laboratories processing multiple samples for critical downstream assays. Manufactured under cGMP, the consistent performance of the Maxwell® CSC 48 Instrument assures extraction of high-quality DNA or RNA from every run.
Flexible, Multipurpose Instrument
A truly versatile instrument with dual-mode software for performing extractions from IVD kits and chemistries in IVD mode, and extractions for a broad range of research applications when operated in the RUO mode.
Currently only available in Korea and the United States.

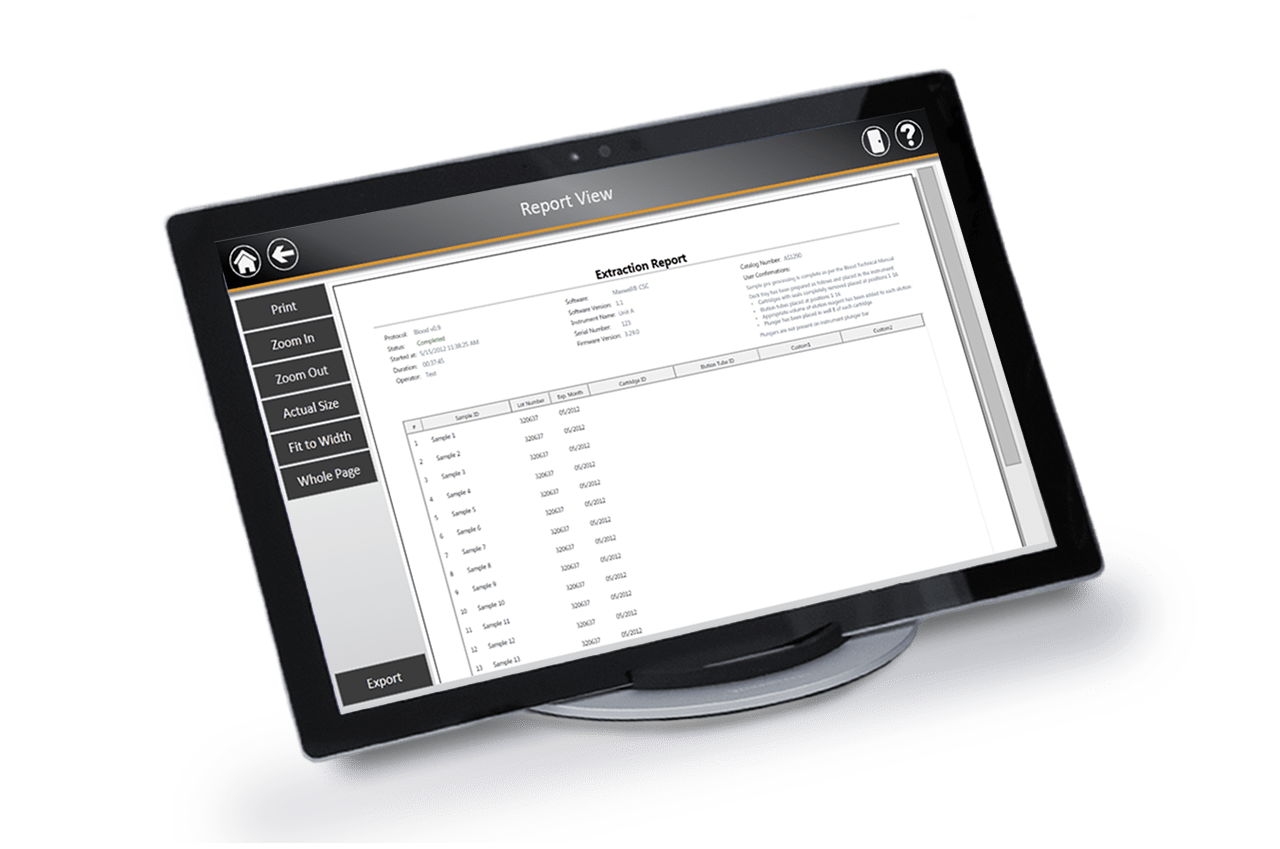

Maintain Electronic Records Easily
Maxwell® CSC 48 makes maintaining electronic records easy with complete tracking of every run and reports that are portable and LIMS-compatible. The instrument supports 21 CFR Part 11 requirements for electronic records (user authentication and authorization, data integrity and protection, electronic signatures and audit trails) when used with the appropriate laboratory workflow.

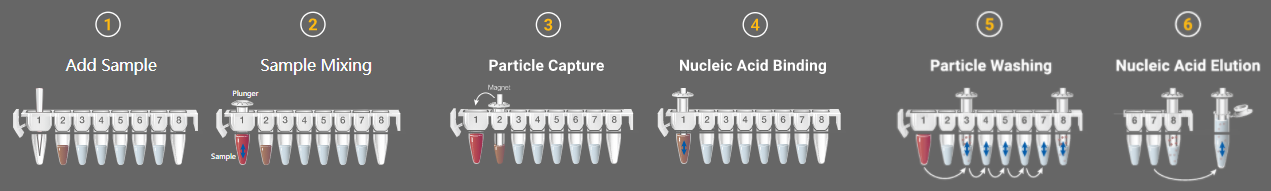

Fewer cross-contamination worries with a paramagnetic particle mover
The Maxwell® CSC 48 Instruments are magnetic particle movers, not liquid handlers. As no liquid handling or splashing occurs during sample processing there is minimal risk of cross-contamination.
The Maxwell® CSC 48 makes it easy to set up and run samples

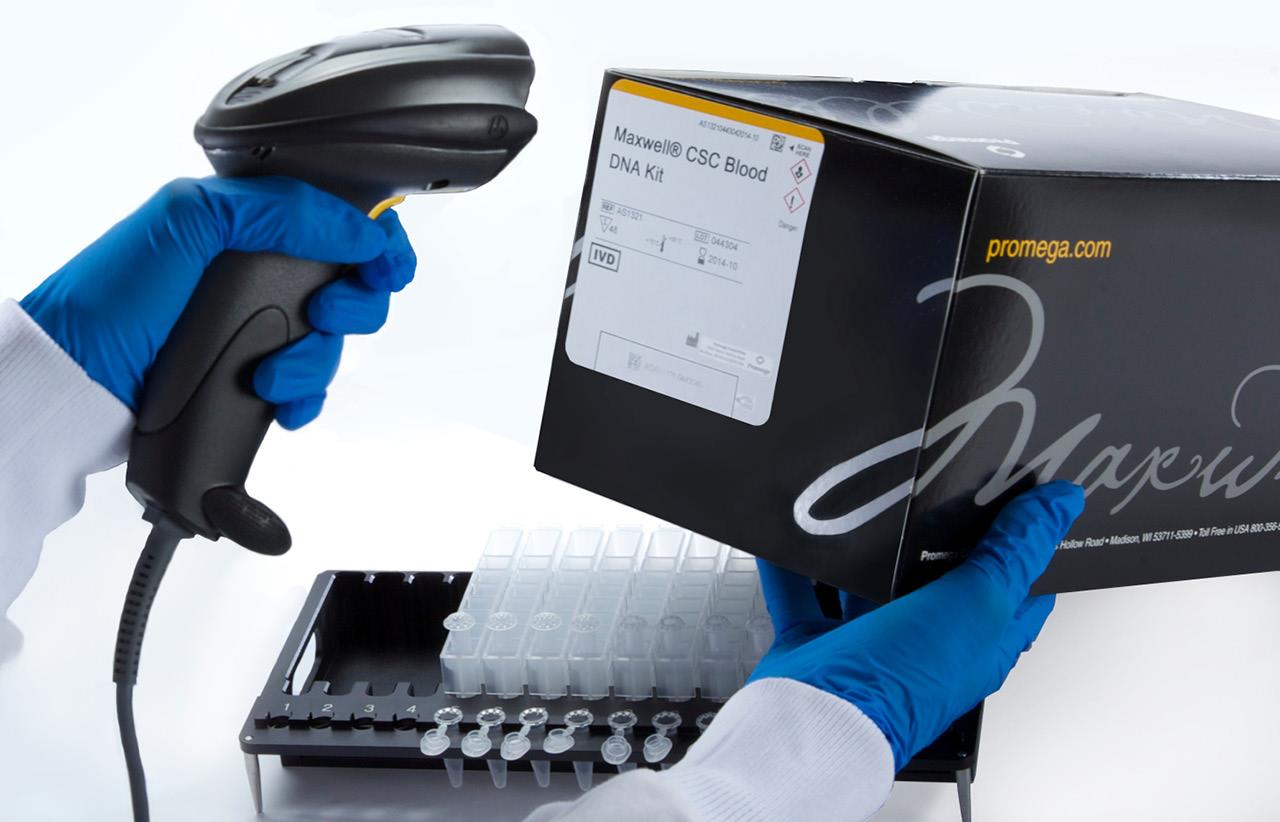

 Dual Mode FunctionalityExtract high-quality DNA/RNA for downstream diagnostic amplification assays in IVD mode or extract samples for a variety of research applications in RUO mode. |  Track Samples EasilyThe integrated bar code reader records important information such as sample ID, kit ID and kit lot number. |
 Easy to UseThe intuitive touch screen interface lets you easily set up your purification run. |  Reduce Processing TimePlace prepared cartridges in the Maxwell® CSC 48. Press “Start” to purify 1–48 samples using the selected kit’s preprogrammed method. |
Works with multiple sample types
Instrument Specifications
Processing Time: 40–60 minutes (depending on sample type and method) Number of Samples: Up to 48 | Weight: <60lb (27kg) Dimensions: 21W × 21D × 14H inches (533.4 × 533.4 × 355.6mm) |
Power Requirements: 100–240VAC, 50/60Hz, 4A Fuse: 250VAC, 4A, low breaking capacity, time-lag fuse (AC250V, T4AL, 5 × 20mm) | UV Bulb: Average lifetime approximately 9,000 hours, length 212.1mm, diameter 16mm, 6W, 0.17A current, 42V, spectral peak F 253.7, UV output 1.7W |

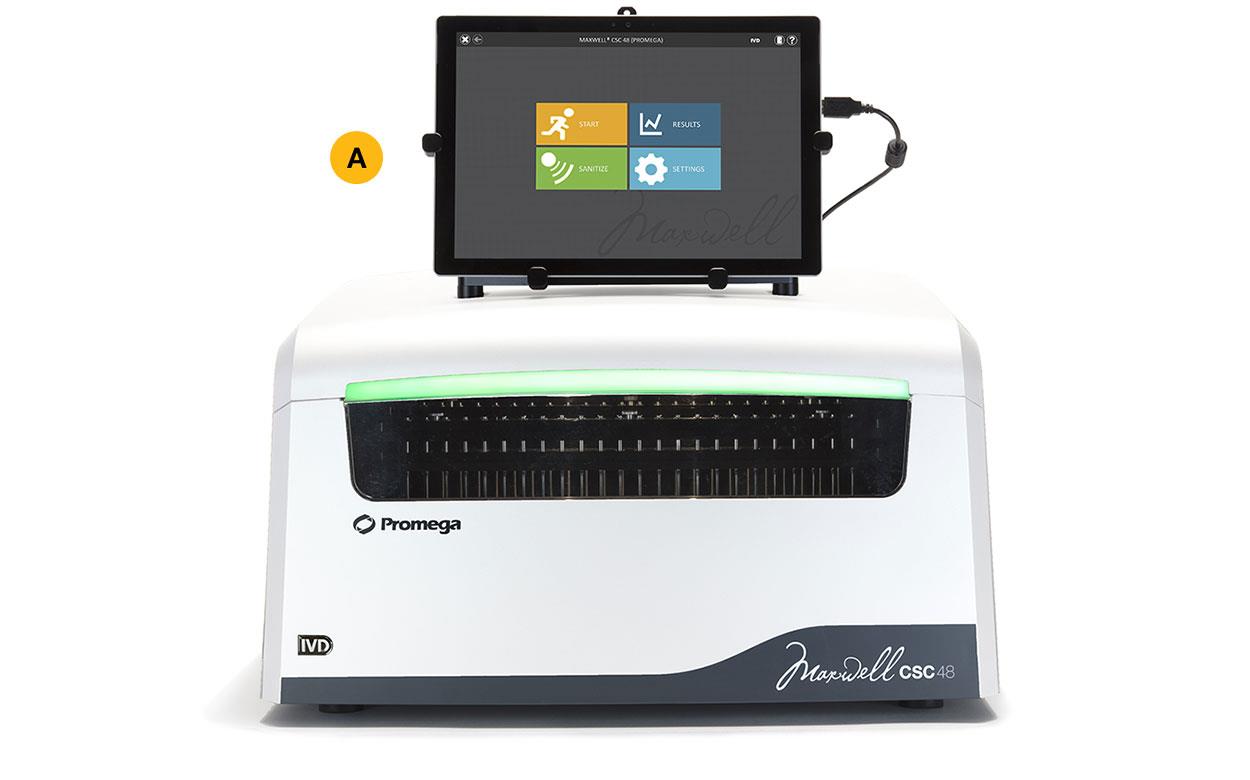

Instrument Standard Components
 A. Maxwell® CSC 48 Instrument B. Tablet PC preloaded with Maxwell® CSC 48 Application Software C. USB Cable: Maxwell® CSC 48 Instrument to Tablet PC D. Power Supply for Instrument (Tablet PC Power Cord provided separately) E. Power Supply for Tablet PC (Instrument Power Cord provided separately) |  F. Maxwell® RSC/CSC Deck Trays (2; only 1 shown) G. Handheld Bar Code Reader H. Tablet PC Holder I. USB Cable: Maxwell® CSC 48 Instrument to Bar Code Reader Not shown: UV Bulb (installed) |
